苏州舜云工程软件有限公司(简称舜云科技)成立于 2019 年 6月，是一家专注于下一代流体多物理场工程数值仿真软件开发的企业，旨在为客户提供先进的工程仿真软件和技术服务，助力客户实现数字化设计和产品创新。 舜云科技目前已向市场推广的三款旗舰产品包括:粒子法流体真软件 shonDy、一/三维热管理软件 shonTA、以及通用流体仿真软件 shonFlow广泛应用于新能源汽车、航空航天、能源和海洋工程等领域。公司已签约以一汽、吉利、江淮、采埃孚、博格华纳、美桥、汇川、精进、宁德时代为标杆的几十家企业、研究院所和高校客户。

shonCloud Engineering Software was established in 2019. It is an enterprise focusing on the development and distribution of next-generation multi-physics engineering simulation software. Aiming to provide customers with an advanced engineering simulation software and technology services to help customers achieve digital design and product innovation. ShonCloud has promoted the following flagship products to the market : ShonDy a particle method fluid simulation software ShonTA a 1D+3D thermal management software shonFlow a general fluid simulation software These products are widely used in new energy vehicles, aerospace, energy and ocean engineering industries. The company has signed contracts with dozens of enterprises, research institutes and universities such as CATL, Geely, ZF, BorgWarner, FAW, BAIC, JAC, Meiqiao, Inovance and Jingjin as benchmarks.

舜云科技核心产品

粒子法流体仿真软件shonDy

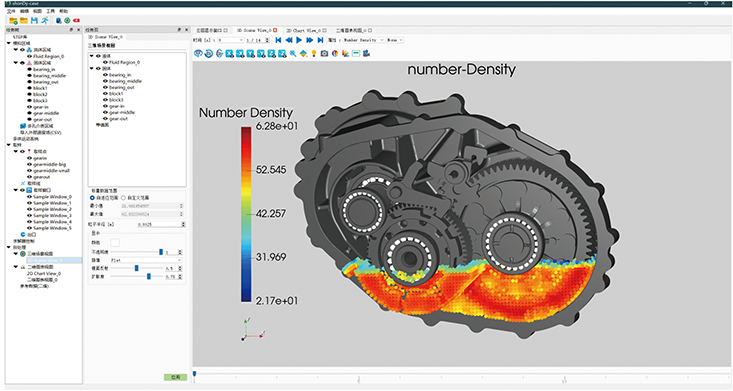

舜云粒子法流体仿真软件shonDy是一款基于无网格粒子法的三维流体多物理场数值仿真软件。用户输入CAD几何模型后，设置刚体运动模式、流体属性等后即可快速启动计算，无需复杂网格划分。由于该软件摆脱了仿真流程中复杂网格的束缚，使数值模拟获得了更大的自由度，在模拟带有溅射等复杂自由液面工程问题上有天然优势。

shonDy is a meshless, particle-based fluid simulation software. It can simulate various physical properties of fluids within a three-dimensional space. Users can easily launch a simulation once they imported their CAD geometry models, configure the movements of the bodies, and set up the physical properties of the involved fluids. In comparison to many other CFD software, shonDy does not require mesh generation for the simulation domain. Without mesh constraints, it is much more flexible in many simulation scenarios. It has particular advantages in simulating free-surface scenarios such as splashing and spraying and when moving bodies are involved.

主要功能

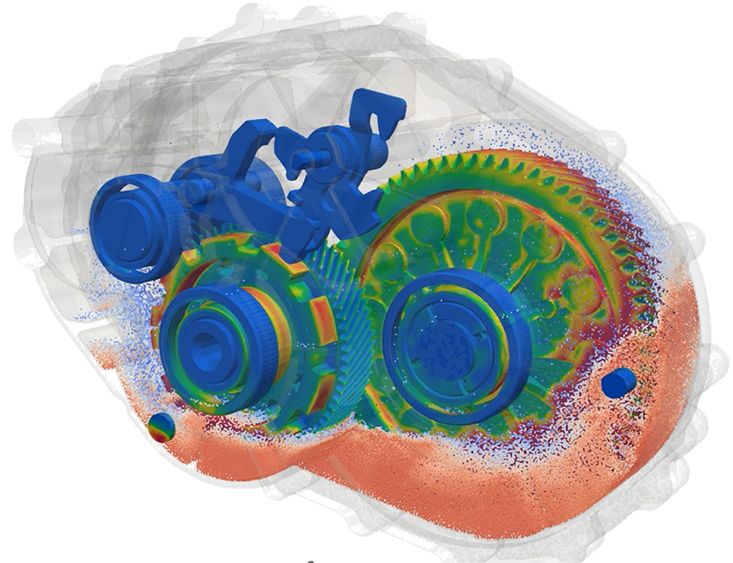

变速箱飞溅润滑仿真；
电机喷油淋油模拟；
汽车油箱晃荡分析；
其他自由液面分析。

主要性能指标

无需网格划分的仿真模拟；
实现千万运动粒子规模仿真；
高性能并行计算；
复杂运动体与流体的耦合运动。

一/三维热管理软件shonTA

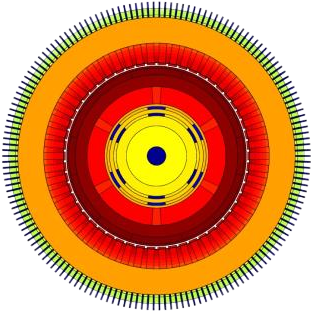

舜云热分析软件shonTA是基于一维热网络与三维有限元热网络方法的热分析软件，是已知市场范围内唯一一个可以用于电驱动系统级一维与三维瞬态热平衡计算的软件，可以计算电机绕组等部件的三维温度分布和系统热平衡。shonTA软件可以模拟变速箱和电机的发热、机械部件的导热、接触传热和最终热阱等。该软件还可以与本公司的粒子法软件shonDy进行耦合计算，分析电机淋油冷却等，为新能源汽车传动系统热设计提供了新的工具和方法。

ShonTA is a thermal analysis software based on the thermal network method and the FEM method. It is the perfect solution for 1D and 3D transient modeling of electric drive systems. It can simulate for example the three-dimensional temperature distribution of windings or other parts of E-motors and give insights on the system’s situation when thermal balance has been reached. ShonTA can simulate the heat losses, contact heat transfer, heat conduction and heat sink in transmission systems and in E-motors. Additionally, it can be coupled with shonDy (particle based fluid simulation) and shonFlow. With shonDy oil splashing analysis in E-motors can be conducted to get heat transfer coefficients. Coupling shonTA and shonDy provides a new simulation tool and method for E-motors and electric vehicles. Together with shonDy fast 1D conjugate heat transfer (CHT) analysis can be done.

主要功能

齿轮啮合功率损失和轴承功率损失计算 齿轮、壳体和轴承等三维刚体结构的导热； 外部环境的对流换热和水冷壁换热； 润滑油冷却系统的温度变化分析； 电机和减速器等系统的一维与三维温度场模拟。

主要性能指标

一维与三维系统稳态与瞬态热分析计算； 计算关键部件之间的接触传热； 支持导入百万级复杂有限元网格； 高性能并行快速计算。

通用流体仿真软件shonFlow

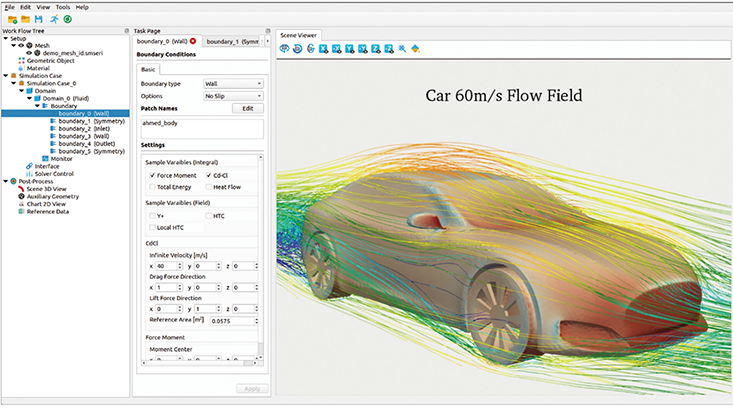

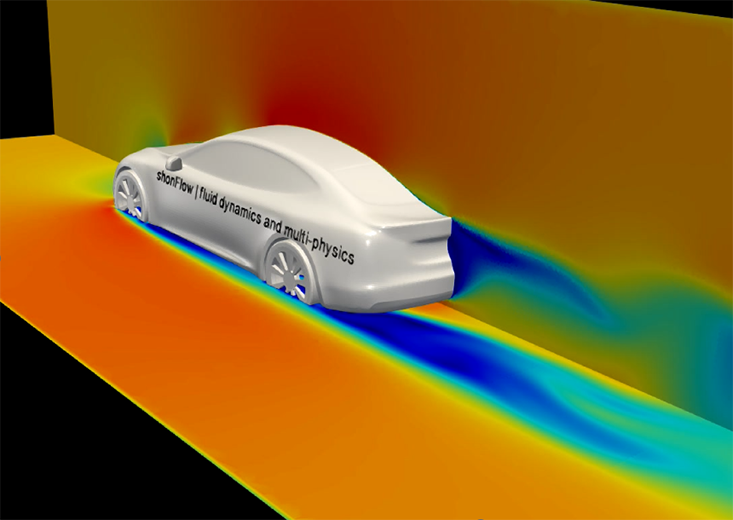

舜云通用CFD软件shonFlow是一款基于有限体积法的流体力学仿真软件，可用于复杂流动的稳态和瞬态模拟，支持叶轮机械、桨叶、风扇等旋转机械流场的仿真计算，支持流体与固体之间的共轭传热，可用于分析结构物的换热效率。shonFlow支持二维和三维的结构化，非结构化网格，可读取CGNS，OpenFOAM等格式。支持常用的湍流模型（k-epsilon, SST, SA）。

shonFlow is a general-purposed computational fluid dynamics software based on the finite volume method. It allows you to simulate complex flows in both steady and transient state. It offers tools to analyze rotating machines including turbines, pumps and fans. For thermal management, shonFlow features a state-of-art conjugate heat transfer (CHT) model to simulate fluid and solid at the same time without the need to generate mesh separately and do the mapping on the CHT interface. shonFlow works perfectly together with shonMesh as a preprocessor to quickly generate computational meshes.

主要功能

无粘流、粘性层流以及湍流等常见流动性形态；
低速不可压缩、亚音速可压缩流动、跨音速流动以及高超音速流动；
一般非惯性系稳态及瞬态计算； 共轭传热；
多相流。

主要技术优势

通用网格支持（结构、非结构以及混合网格） 具备高精度计算能力，可以对特定流动进行精细化模拟研究 混合参数计算（对不同区域采用不同的计算参数，如高精度和低精度混合，湍流模型混合等） 可与shonTA进行共轭传热分析 支持分布式大规模并行计算 全自主开发，可进行深度定制。

舜云科技特约赞助

苏州舜云工程软件有限公司是“2023中国新能源电驱动系统技术发展大会”的赞助商，将被作为VIP嘉宾受邀出席大会。届时，将在大会上与数百名行业头部企业的高管和工程技术人员会面，通过展台和演讲，展示该企业最核心、最前沿的产品技术，建立高端、有效的商务合作关系。
