沈阳宏远电磁线股份有限公司，始建于1983年，位于沈阳经济技术开发区，公司占地面积66700余平方米，主要产品为各类型铜绕组线，包括各类型漆包线、纸包线、换位导线等系列产品，是国家电网的合格供应商。
公司拥有信息化、智能化、“三十万级无尘、5G生产车间”，严格执行IATF 16949管理体系，加强人、机、料、法、环、测等各环节管控，将全面提升新能源汽车电机用高端漆包线的质量、产能，布局新能源汽车领域，加强对800V驱动电机漆包铜扁线的研发及持续改进以满足客户的需求。
Shenyang Hongyuan Magnet Wire Co., Ltd. is established in 1983 and located in the Economic and Technological development Zone in Shenyang . The company covers the area of over 66700 square meters and mainly produces various types of copper winding wires, including various types of enamelled wires, paper wrapped wires(PICC), transposed wires(CTC), and other series of products. It is a qualified supplier of State Grid Corporation of China.
The company has an information-based, intelligent, "300-thousand level dust-free, 5G production workshop", strictly implements the IATF 16949 management system, strengthens the control of various links such as personnel, machinery, materials, method, environment, and testing, and comprehensively improves the quality and production capacity of high-end enameled wires for new energy vehicle motors. The company plans to layout the new energy vehicle field, strengthen the research and development of 800V drive motor enameled copper flat wires, and continuously improve them to meet the requirement of customer.
宏远股份耐核心产品

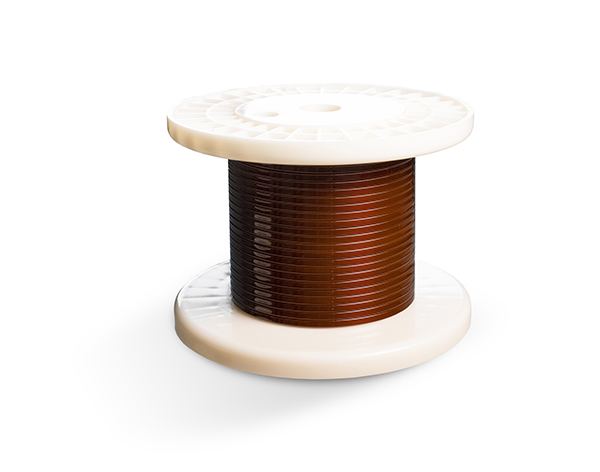

耐电晕漆包线
Corona Resistant Enamelled Wire
聚酰胺酰亚胺耐电晕漆包铜扁线：
耐电晕寿命：≥200h;
PDIV (Vp)：≥1600v(单面漆膜厚度0.12mm)：
漆膜柔物性：1.5倍的厚度和1.5倍的宽度卷绕不开裂：
漆膜均匀性：最厚/最薄≤1.3。
产品截面积（mm²）：2-20
厚度范围 (mm)：0.80-3.00
宽度范围 (mm)：2.00-8.00
宽厚比：1.6
双面漆膜厚度（mm）：最大0.3
聚酰亚胺耐电晕漆包铜扁线：
耐电晕寿命：≥500h
PDIV (Vp)：≥1700V(单面漆膜厚度0.12mm)
漆膜柔轫性：1倍的厚度和1倍的宽度卷绕不开裂
漆膜均匀性：最厚/最薄≤1.3
产品截面积 (mm²)：2-20
厚度范围 (mm)：0.80-3.00
宽度范围 (mm)：2.00-8.00
宽厚比：1-6
双面漆膜厚度 （mm)：最大0.3
聚酰亚胺高PDIV漆包铜扁线
PDIV (Vp) ： ≥1900V（単面漆膜厚度0.13mm）：
漆膜柔韧性：1倍的厚度和1倍的宽度卷绕不开裂;
漆膜均匀性：最厚/最薄≤1.3.
产品截面积（mm²）：2-20
厚度范围 (mm)：0.80-3.00
宽度范国 （mm)：2.00-8.00
宽厚比：1-6
双面漆膜厚度 (mm)：最大0.3
Polyamide Imide Corona Resistant Enamelled Copper Flat Wire:
Corona resistance life: ≥200h;
PDIV (Vp) : ≥1600v(single enamel thickness 0.12mm) :
Enamel flexibility: 1.5 times the thickness and 1.5 times the width of the winding does not crack
Enamel uniformity: thickest/thinnest ≤1.3
Product cross-sectional area (mm²) : 2-20
Thickness range (mm) : 0.80-3.00
Width range (mm) : 2.00-8.00
Width to thickness ratio: 1-6
Double-sided enamel thickness (mm) : maximum 0.3
Polyimide Corona Resistant Enamelled Copper Flat Wire:
Corona resistance life: ≥500h
PDIV (Vp) : ≥1700V(single enamel thickness 0.12mm)
Enamel flexibility: 1 times the thickness and 1 times the width of the winding does not crack
Enamel uniformity: thickest/thinnest ≤1.3
Product cross-sectional area (mm²) : 2-20
Thickness range (mm) : 0.80-3.00
Width range (mm) : 2.00-8.00
Width to thickness ratio: 1-6
Double-sided enamel thickness (mm) : maximum 0.3
Polyimide High PDIV Enamelled Copper Flat Wire
Enamel flexibility: 1 times the thickness and 1 times the width of the winding without cracking;
Enamel uniformity: thickest/thinnest ≤1.3.
Product cross-sectional area (mm²) : 2-20
Thickness range (mm) : 0.80-3.00
Width range (mm) : 2.00-8.00
Width to thickness ratio: 1-6
Double-sided enamel thickness (mm) : maximum 0.3
宏远股份特约赞助
沈阳宏远电磁线股份有限公司是“2023中国新能源电驱动系统技术发展大会”的赞助商，将被作为VIP嘉宾受邀出席大会。届时，将在大会上与数百名行业头部企业的高管和工程技术人员会面，通过展台，展示该企业最核心、最前沿的产品技术，建立高端、有效的商务合作关系。
